Category of use Grade 13 according to BS EN 1935 heavy duty door. HANGFAT door furniture is available in satin stainless steel, polished stainless steel, PVD gold, PVD black or electrophoresis black. The range of models availably meets standard contract market requirements, heavy duty doors like hotels, office commercial usage, .
• Category of use Grade 13 according to BS EN 1935
• Available in stainless steel 304 or 316 material and any color
• 5-year warranty
Attractive design

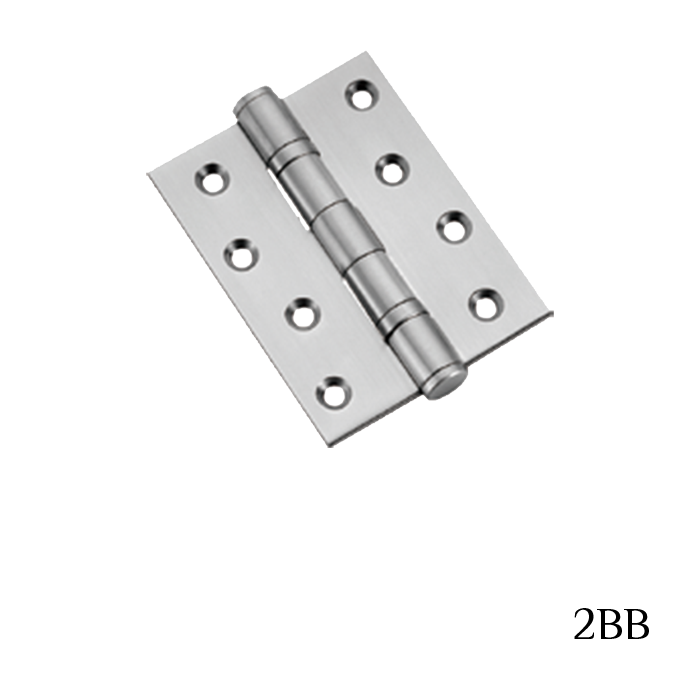

The HANGFAT Stainless Steel Grade 13 Double Ball Bearing Butt Hinge design comes from popular standard hinge of functional quality. Fittings are characterised by our proven technology and operational reliability.We offer fixed pin as standard, loose pin or None removable pin fixing.Real ball bearings make the operation smooth and no falling during in use. Skilled professional craftsman brushes the surface carefully and ensure the surface elaborate.
High quality materials
Our Stainless Steel Grade13 Heavy Door Two Ball Bearing Butt Hinges are made from high quality materials and exude careful workmanship. HANGFAT handle meets high demands with respect to resilience, reliability and corrosion resistance. SUS304 material satin finish could reach 240H anti-corrosion test. SUS316 material is available. Irrespective of which material you choose, with HANGFAT hinge you are opting for a door furniture solution of contemporary elegance. The choice and quality of the surfaces satisfy the requirements for standard applications, whether in the private sphere or for interior doors in office buildings.
Quality at an attractive price
The hinge range encompasses the most common models. Hardware sets are good quality door furniture at an attractive price.
Fire Rated Doors
HANGFAT hinges are suitable for use on fire rated doors
Before installing hinge on fire doors please check with the fire door manufacturer to ensure compliance.
Benefits for the trade/distributor
• 5-year warranty on all products of the hinges
• Attractively priced door hinge featuring the most common sizes for EU countries.
Benefits for the installer/fabricator
• Approved to BS EN 1935, category of use Grade 13, with high corrosion resistance to Grade 4
• 4"x3"x3mm/ 4"x4"x3mm size for door 38-50mm thickness
• All models feature wooden screws. If need for metal door, pls contact for machine screws.
• Standard door height at 2200-2500mm install with 3pcs hinges. H1900-2200mm with 2pcs hinge. H2500-2800mm install with 4 pcs hinges.
Specifications
Model: 2BB-4330, 2BB-4430, 2BB-45435,2BB-53530,2BB-45430
Material: SUS304 or SUS316
Durability: 200,000 cycles
Door weight: 80-120KGS
Size:4"x3"x3mm, 4"x4"x3mm, 4.5"x4"x3.0mm,4.5"x4"x3.5mm, 5"x3.5"x3mm
Doors: wood door or metal door
Screw hole templete: zig-zag, template
Pin fixing: fixed pin, loose pin, NRP
Quality standard: EN1935 grade 13 for heavy duty door
Salt spray test: EN1670 grade 4(240H)
Color: satin, polished, PVD gold, PVD black, electrophoresis black, powder coating any color
OEM: OEM/ODM
