Attractive design

The HANGFAT lever handle comes in a concise design of functional quality. Fittings are characterised by their proven technology and operational reliability. Smooth 90 degree corner, R14.5~R22 radious selected. Laser welding end tube to ensure the round end. Skilled professional craftsman brushes the surface carefully and ensure the surface elaborate.

High quality materials

Our INOX door handles are made from high quality materials and exude careful workmanship. HANGFAT handle trims meets high demands with respect to resilience, reliability and corrosion resistance. SUS304 material satin finish could reach 480H anti-corrosion test.

Quality at an attractive price

The TUBE TRIM HANDLE range encompasses the most common lever handle models. Hardware sets  are good quality door furniture at an attractive price. We offer buzzle option of inner construction to reach various target price requirement.

With integral springing

Models are provided with RH or LH springing in order to return the lever handle to the horizontal.Keep quality tolerance less than 1 degree.

Key

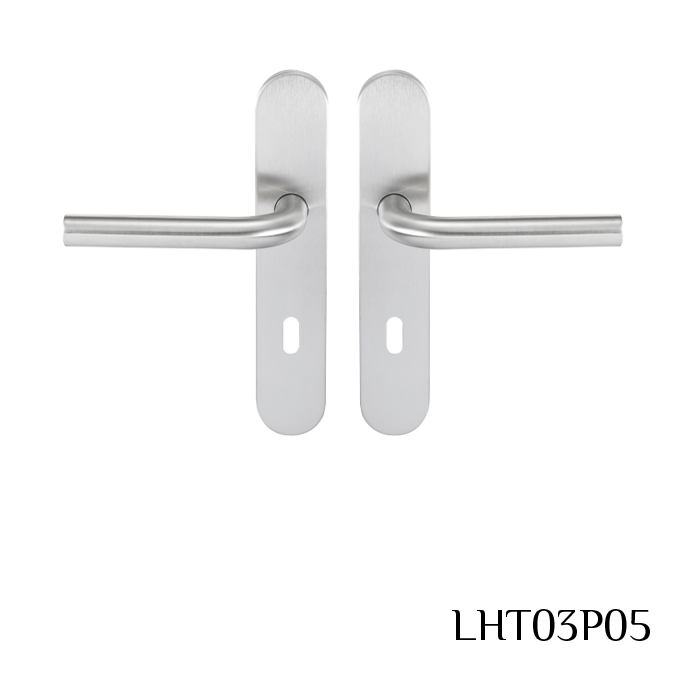

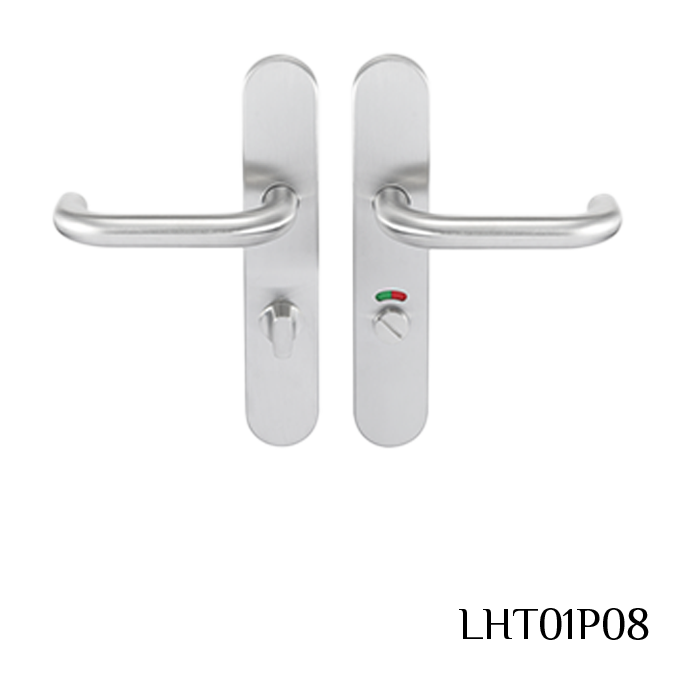

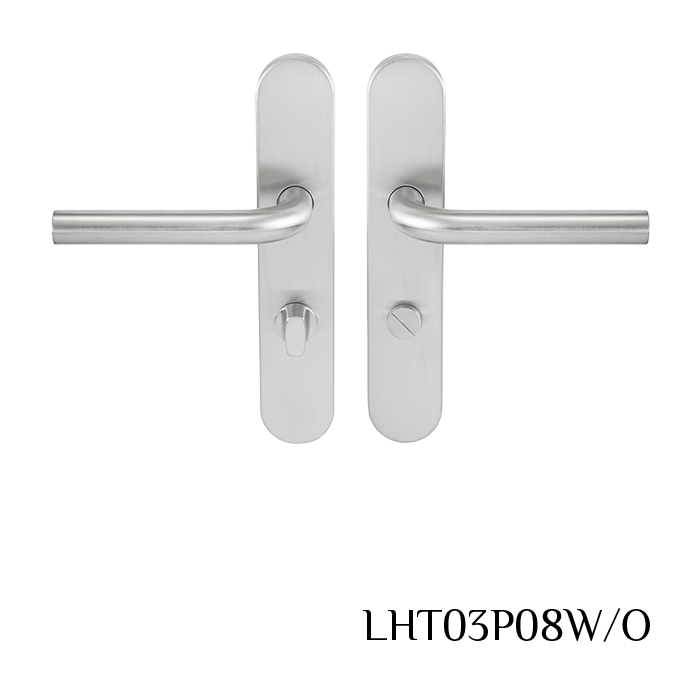

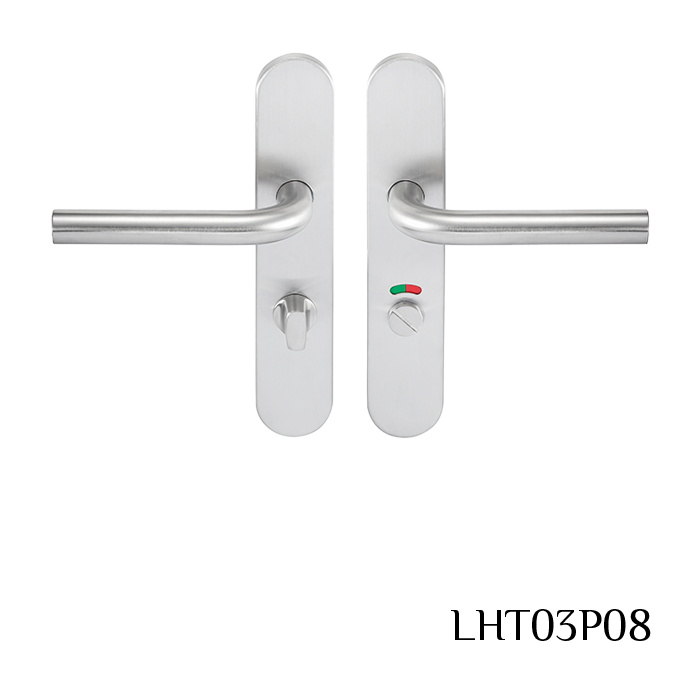

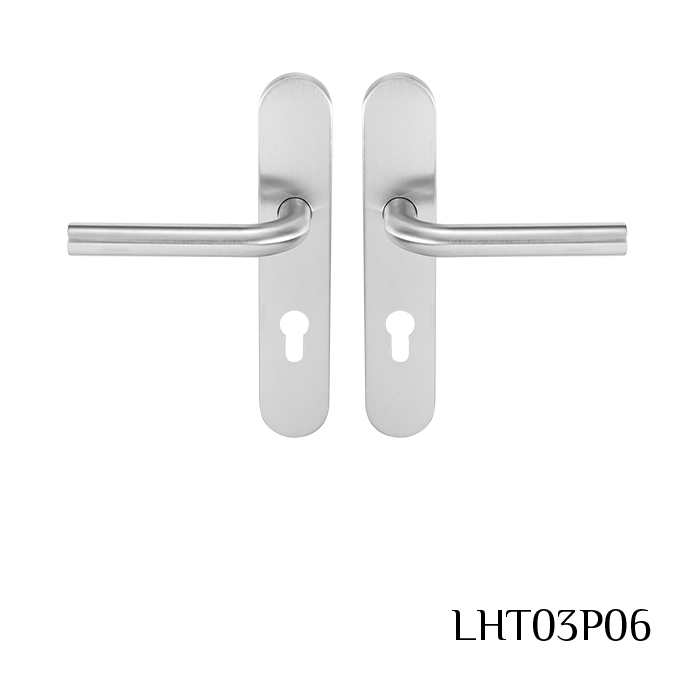

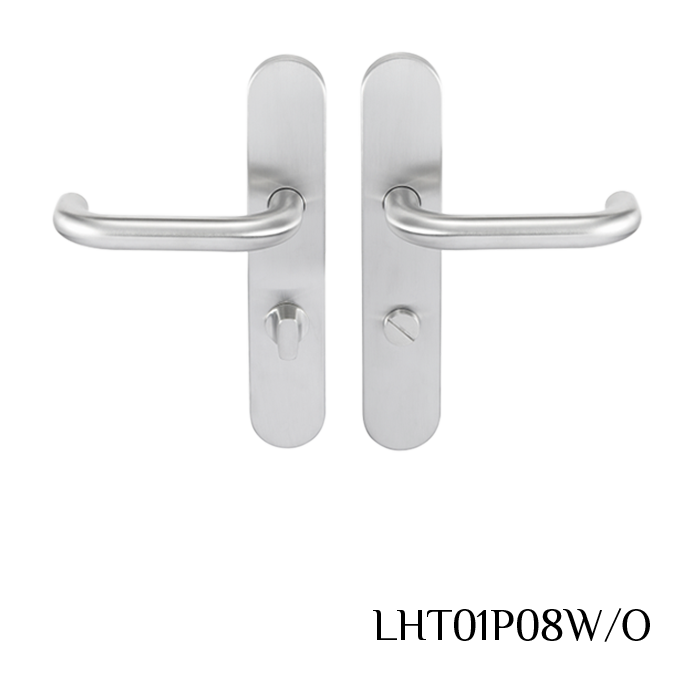

For round rose escutcheons, I key(PZ key), L key(BB key), Blind key, WC knob with color indicator, WC knob without indicator for interior room are optional. C-C distance of key hole to lever hole at 70mm, 72mm, 85mm, 92mm choosable for diffirent market.

Available in satin stainless steel 304 or 316

Irrespective of which material you choose, with HANGFAT LEVER you are opting for a door furniture solution of contemporary elegance. The choice and quality of the surfaces satisfy the requirements for standard applications, whether in the private sphere or for interior doors in office buildings, even for profile doors and fit with different lockcase for different market, like France, Germany, Swiss, Denmark etc..

Spindle

To match with market lockcase, we offer square 7mm, 8mm, 8.5mm, 9mm spindles choosable.

Fire Rated Doors

HANGFAT LEVER sets are suitable for use on fire rated doors

Before installing lever handles on fire doors please check with the fire door manufacturer to ensure compliance.

Benefits for the trade/distributor

• 5-year warranty on all products of the TUBE HANDLE sets

• Attractively priced door handles featuring the most common lever handle models for whole EU countries.

Benefits for the installer/fabricator

• Approved to BS EN 1906, category of use Grade 3 or 4, with extremely high corrosion resistance to Grade 4 or GRADE 5

• Just one screw length for door thickness of 38mm - 55mm. If need for 55mm-75mm, pls contact for accessories.

• All models feature integral springing
